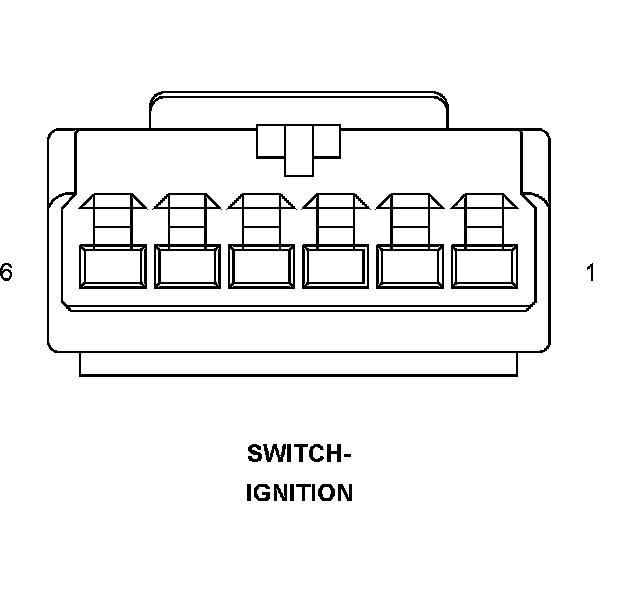

Ignition Switch: Locations
Component ID:
304
Component :
SWITCH-IGNITION
Connector:
Name :
SWITCH-IGNITION
Color :
BLACK
# of pins :
6
Pin Circuit Description 1
Z109 18BK/GY
GROUND
2
G20 18VT/BR
IGNITION RUN/START SWITCH SENSE
3
F20 18PK/GY
IGNITION SWITCH SENSE INPUT
4
-
-
5
-
-
6
A106 18LB/RD
FUSED B(+)
Component Location - 22
Component Location - 29
