Front Center Distribution Ducts - Installation







INSTALLATION

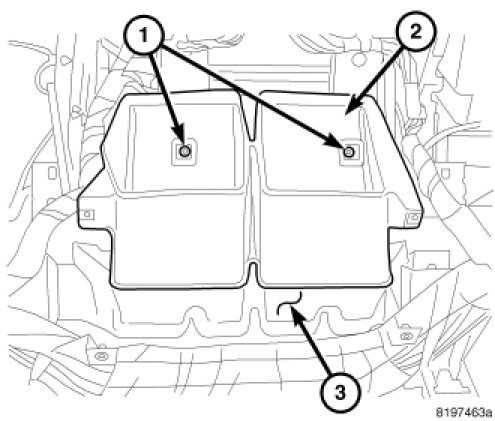

1. Connect the center distribution duct (2) to the instrument panel duct (3).
2. Install the two screws (1) that secure the center distribution duct to the instrument panel support. Tighten the screws to 2 Nm (17 in. lbs.).
3. Install the demister ducts Front Instrument Panel Demister Ducts - Installation.
4. Install the defroster duct Front Defroster Ducts - Installation.
5. Install the instrument panel Instrument Panel - Installation.
