System Specifications
TIMING CHAIN TENSIONER Timing Chain Tensioner Arm
28 Nm (250 In.Lbs.)
Secondary Chain Tensioner
28 Nm (250 In.Lbs.)
TIMING GEAR/SPROCKET Idler Sprocket (oiled)
34 Nm (25 Ft.Lbs.)
Camshaft Sprocket (excess oil removed)
122 Nm (90 Ft.Lbs.)

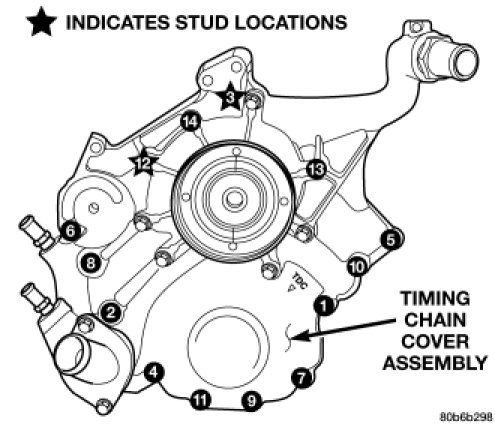

TIMING COVER Tighten flange head fasteners in sequence shown to 58 Nm (43 ft. lbs.).
