Installation
INSTALLATION 1.
Check condition of sensor o-ring.
2.
Lubricate sensor o-ring and sensor hole in intake manifold cover with clean engine oil.
3.

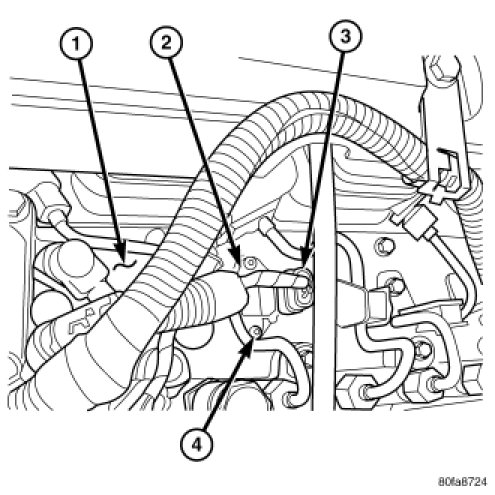

Clean sensor mounting area at intake manifold (1).
4.
Position sensor (2) into intake manifold.
5.
Install and tighten 2 sensor mounting screws to 1 Nm (9 in. lbs.) torque.
6.
Connect electrical connector to sensor.
