Removal

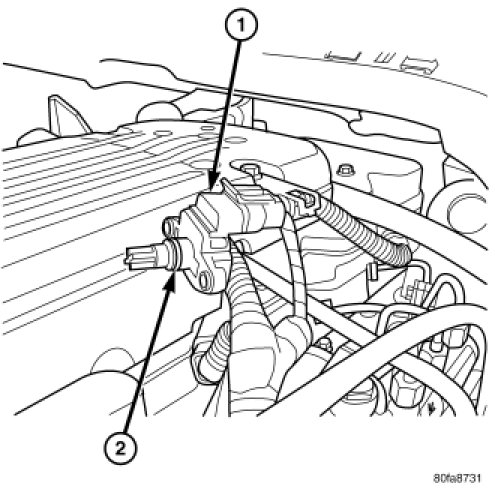

REMOVALThe combination, dual function Intake Manifold Air Temperature Sensor/
MAP (IAT/MAP) sensor is installed (2) into the top of the intake manifold.
1.
Clean area around sensor.
2.
Disconnect electrical connector (3) from IAT/MAP sensor.
3.
Remove two T-15 Torx headed screws (4).
4.
Remove sensor from intake manifold.
5.
Check condition of sensor O-ring (2).
