Cylinder Head Assembly

Cylinder Head Specifications

Cylinder Head:

Torque

Bolts-Cylinder Head

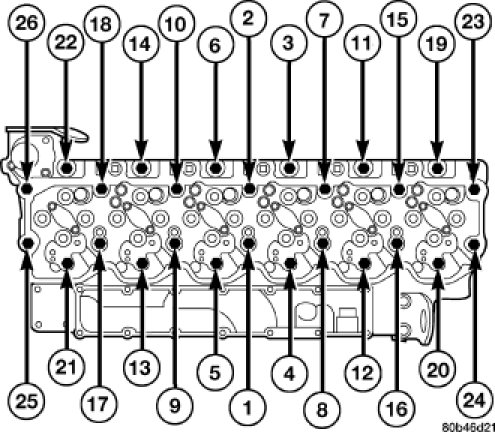

Using the sequence shown , tighten bolts in the following steps:
a. Torque bolts to 70 Nm (52 ft. lbs.).
b. Back off 360 degrees in sequence.
c. Torque bolts to 105 Nm (77 ft. lbs.).
d. Re-check all bolts to 105 Nm (77 ft. lbs.).
e. Tighten all bolts an additional 1/4 turn (90°).

Bolt-Rocker Arm

Rocker Arm/Pedestal Bolts 36 Nm (27 ft. lbs.)

Intake Manifold

Intake Cover to Cylinder Head 12 Nm (105 In. lbs.).

Exhaust Manifold

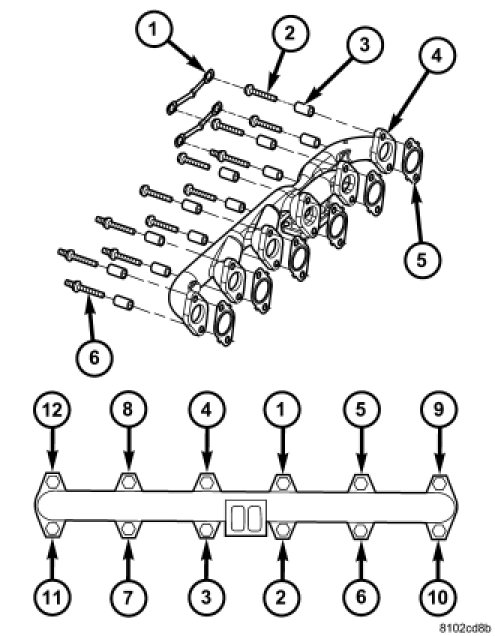

Tighten the bolts in the sequence shown to 43 Nm (32 ft. lbs.) torque.
