Oil Pan, Engine

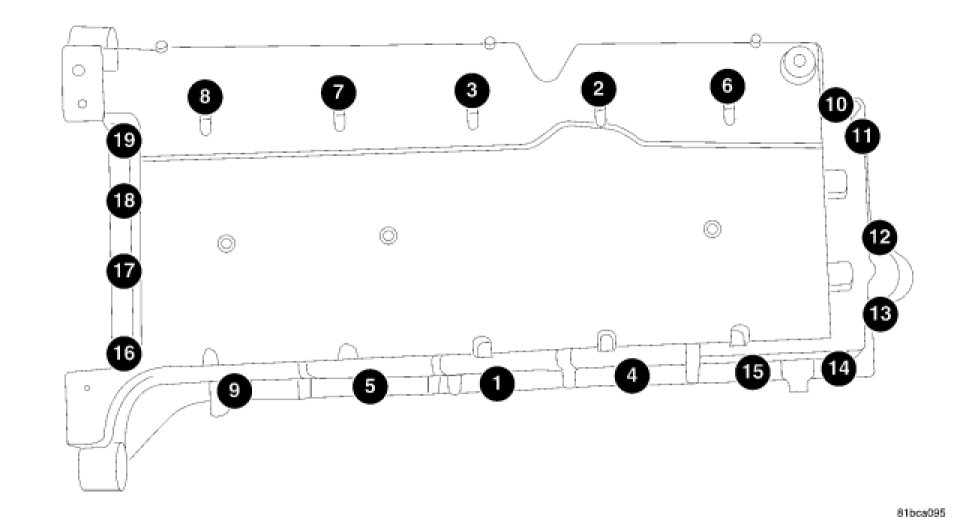

OIL PAN TORQUE AND SEQUENCE 1.
Position
oil pan (1) and gasket (2) to engine block. Hand start all fasteners.
2.
Run the transmission to
oil pan bolts in finger tight.
3.
Tighten
oil pan bolts 1 - 15 to 23 Nm (200 in. lbs.).
4.
Tighten
oil pan bolts 16 - 19 to 11 Nm (95 in lbs.).
5.
Tighten transmission to
oil pan bolts (3) to 23 Nm (200 in. lbs.).
