Engine Torque Specifications

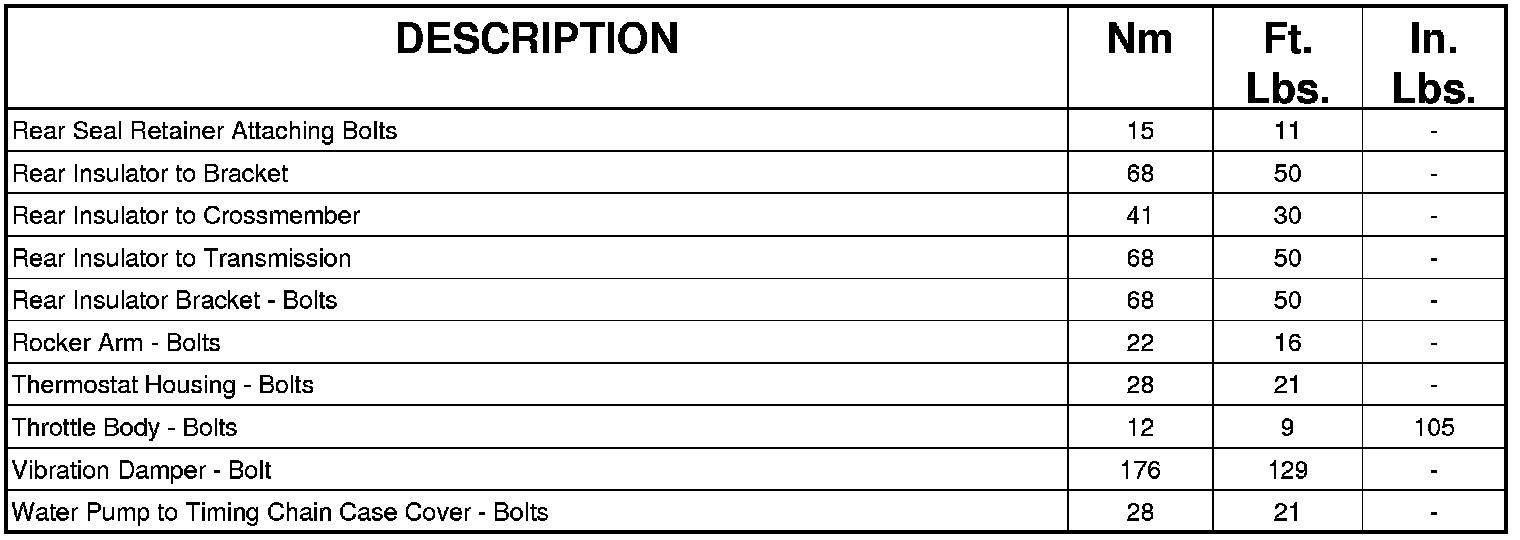

TORQUE

6.1L ENGINE









CYLINDER HEAD





INTAKE MANIFOLD





MAIN BEARING CAP





Tighten main bearing cap bolts to 10 Nm ( 15ft. lbs.) in the sequence shown.
Tighten main bearing cap bolts to 27 Nm ( 20 ft. lbs.) in the sequence shown.
Rotate main bearing cap bolts an additional 90° in the sequence shown.

Cross Bolts





Install the cross bolts with new seal washers.
Tighten main bearing cap cross bolts to 10 Nm ( 15 ft. lbs.) in the sequence shown.
Tighten main bearing cap cross bolts to 28 Nm ( 21 ft. lbs.) in the sequence shown.
Tighten main bearing cap cross bolts to 28 Nm ( 21 ft. lbs.) in the sequence shown again.

FLEX PLATE





FLYWHEEL





EXHAUST MANIFOLD
