Installation






3.5L

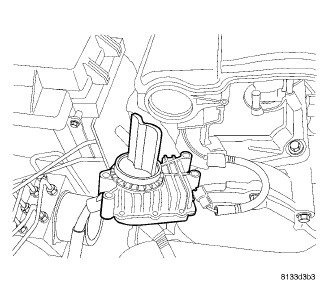

1. Install the Manifold Tuning Valve.
2. Install the 2 mounting bolts.
3. Tighten bolts to 2.8 Nm (25 in. lbs.).

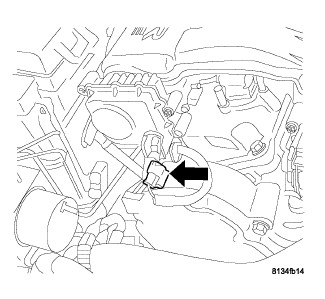

4. Connect the electrical connector.
5. Connect negative battery cable.
