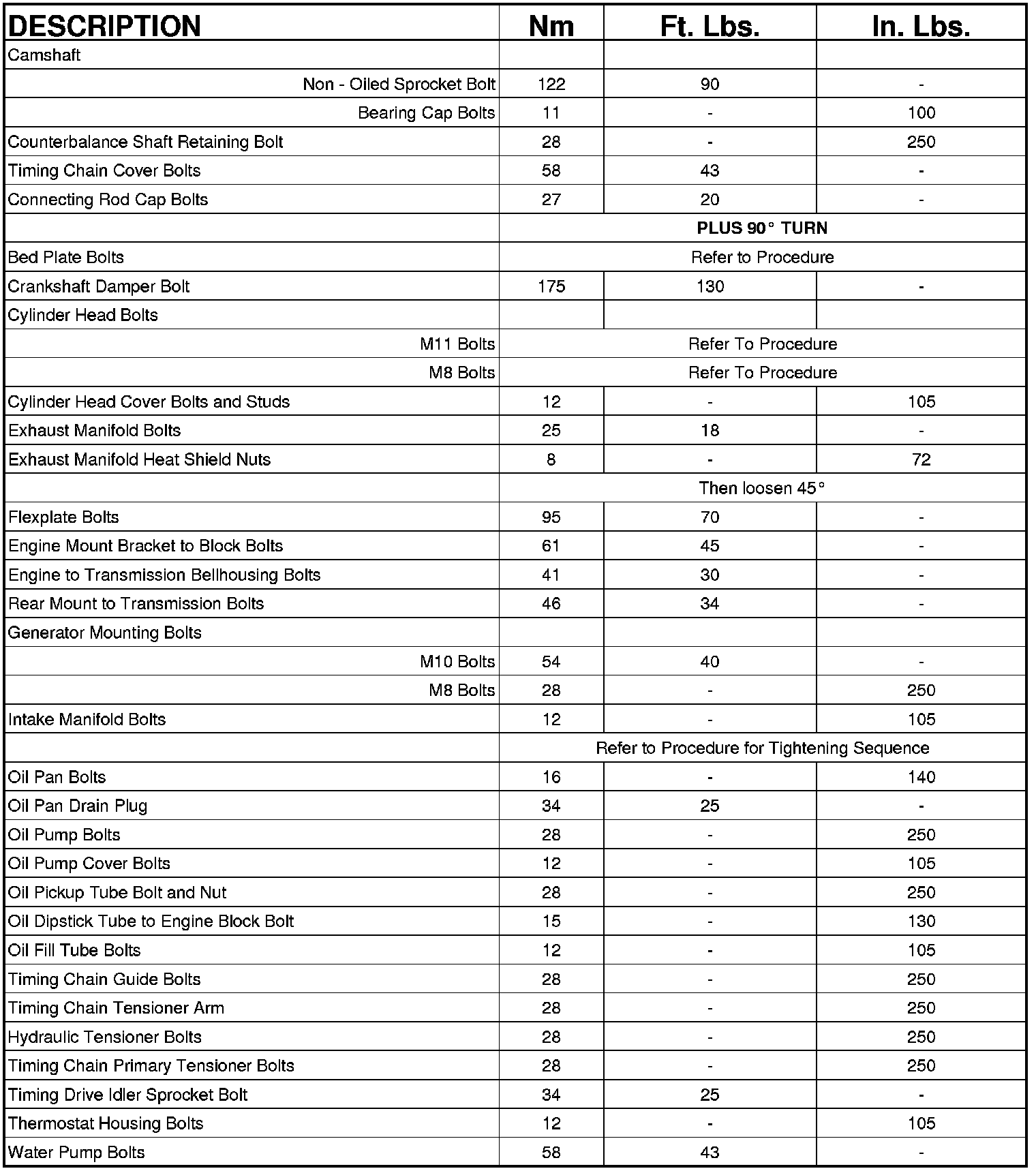

Engine Torque Specifications

TORQUE






CYLINDER HEAD





Tighten the bolts in sequence using the following steps and torque values:
Step 1: Tighten bolts 1-8 27 Nm (20 ft. lbs.)
Step 2: Verify that bolts 1-8, all reached 27 Nm (20 ft. lbs.), by repeating step 1 without loosening the bolts. Tighten bolts 9 thru 12 to 14 Nm (10 ft. lbs.)
Step 3: Tighten bolts 1-8 90 degrees.
Step 4: Tighten bolts 1-8 90 degrees, again. Tighten bolts 9-12 26 Nm (19 ft. lbs.)

HEAD BOLT REUSE/REPLACE

The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts should be replaced.

INTAKE MANIFOLD





CAMSHAFT BEARING CAP





MAIN BEARING CAP





Hand tighten bolts 1D,1G and 1F until the bedplate contacts the block.
Tighten bolts 1A - 1J to 54 Nm (40 ft. lbs.)
Tighten bolts 1 - 8 to 7 Nm (62 in. lbs.)
Turn bolts 1 - 8 an additional 90°.
Tighten bolts A - E 27 Nm ( 20 ft. lbs.).


FLYWHEEL/FLEX PLATE





Flexplate bolts 95 Nm (70 ft. lbs.)





Flywheel Bolts 95 Nm (70 ft. lbs.)

OIL PUMP





EXHAUST MANIFOLD

Start at the center and work outward.

WATER PUMP
