Center Distribution Duct - Installation

INSTALLATION

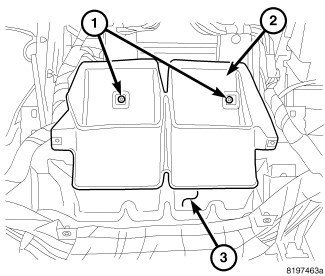

1. Connect the center distribution duct (2) to the instrument panel duct (3).
2. Install the two screws (1) that secure the center distribution duct to the instrument panel support. Tighten the screws to 2 Nm (17 in. lbs.).
3. Install the demister ducts Instrument Panel Demister Duct - Installation.
4. Install the defroster duct Defroster Duct - Installation.
5. Install the instrument panel Instrument Panel - Installation.
