Exhaust Gas Recirculation (EGR) Valve - Installation






INSTALLATION





1. Position a new gasket between the cylinder head (1) and the EGR valve assembly (3).
2. Install two mounting bolts (2) and tighten to 27 Nm (20 ft.lbs.).





3. Clean the EGR tube where it joins the EGR valve.
4. Position the new gasket between the EGR tube flange and the EGR valve assembly.

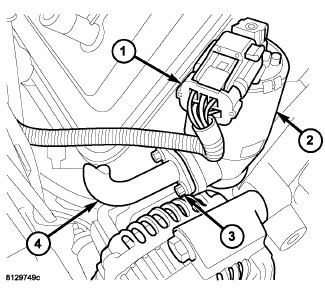

5. Install two bolts (3) connecting the EGR tube (4) to the EGR valve assembly (2) and tighten to 27 Nm (20 ft.lbs.).
6. Connect the electrical connector (1) to the EGR solenoid (2).
7. Connect the negative battery cable.
8. Using a diagnostic scan tool, erase any previously recorded DTC's (Diagnostic Trouble Codes).
