Curb Height Specifications

CURB HEIGHT SPECIFICATIONS






NOTE: On some vehicles it may be necessary to remove an engine belly pan in order to gain access to the lower control arm pivot bolt.






Front - On each side of the vehicle, measure the distance (2) from the flat surface behind the PLP hole (1) to the floor or alignment rack/lift runway surface. It may be necessary to measure to the bottom of a straight edge (3), placed from lift runway to runway, to get an accurate measurement.





Rear - On each side of the vehicle, measure the distance (2) from the flat surface below the rear toe adjustment cam bolt (1) to the floor or alignment rack/lift runway surface. It may be necessary to measure to the bottom of a straight edge (3), placed from lift runway to runway, to get an accurate measurement.

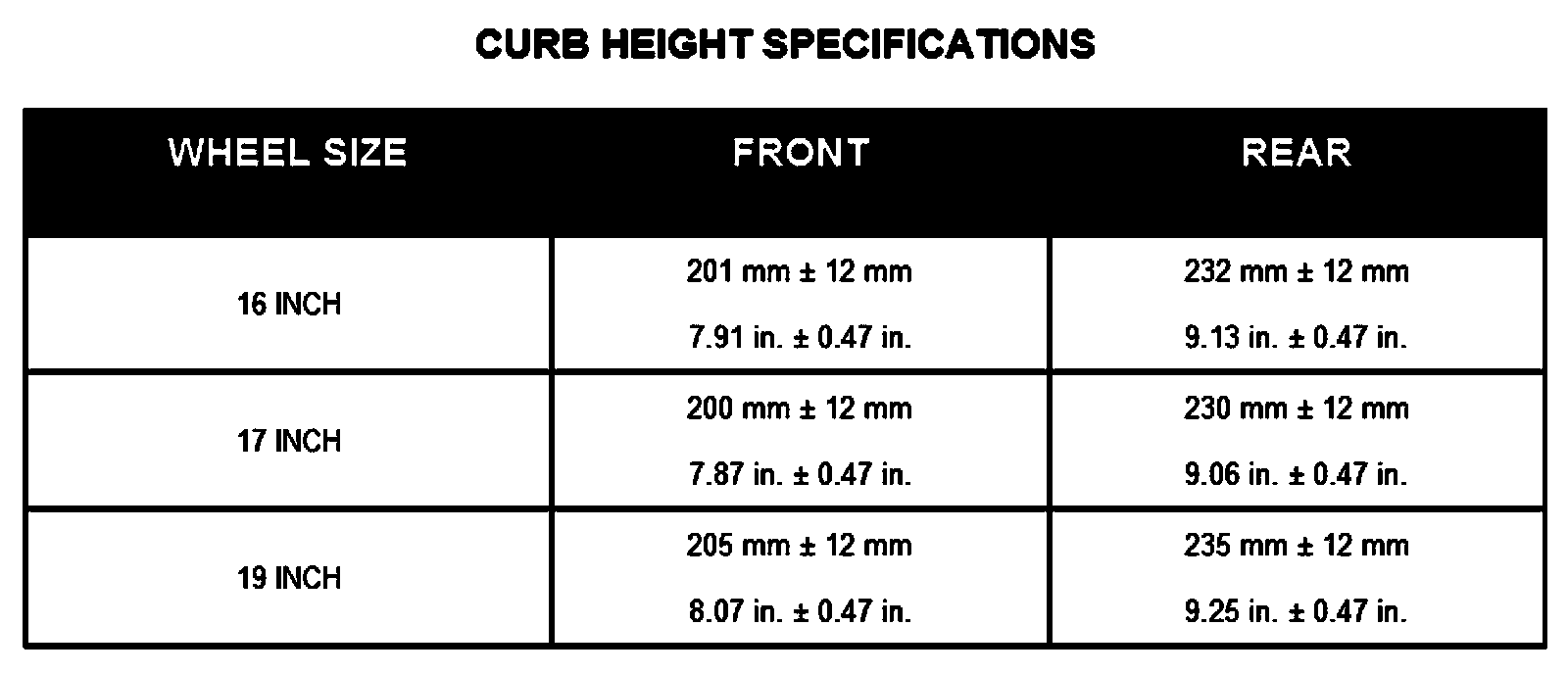

Compare the measurements to specifications listed in the CURB HEIGHT SPECIFICATIONS chart. Maximum left-to-right differential is not to exceed 12.5 mm (0.5 in.).
