Starter - Installation
4.0L 1.

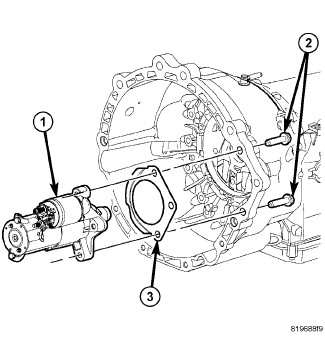

Rotate starter assembly (1) to allow positioning into transmission.
2.
Install two starter mounting bolts (2) and tighten.
3.
Position
battery cable assembly (2) onto stud (3) while pushing solenoid connector (5) onto solenoid terminal.
4.
Install nut (1) and tighten.
5.
Four Wheel Drive Equipped: Install front propeller shaft.
6.
Lower vehicle.
7.
Connect negative
battery cable.
