Removal

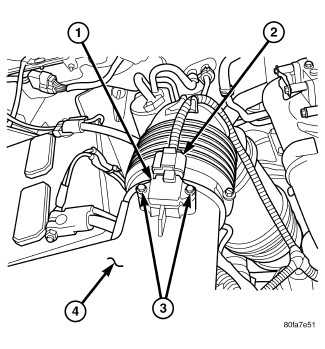

REMOVALThe Inlet Air Temperature/Pressure Sensor is located on the air cleaner cover.
1.
Disconnect electrical connector at sensor.
2.
Remove two Torx-type mounting screws (3).
3.
Remove sensor from air cleaner cover.
4.
Check condition of sensor O-ring (2).
