Installation
INSTALLATION 1.
Inspect
fuel pressure sensor sealing surface.
2.
Lubricate sensor threads with clean diesel fuel.
3.

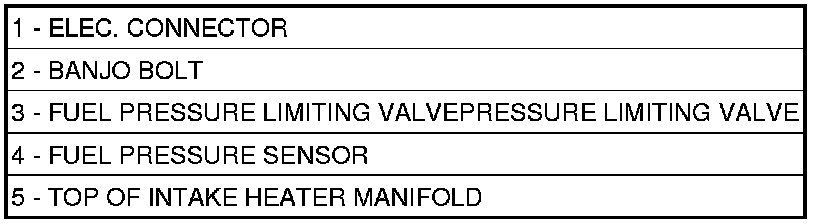

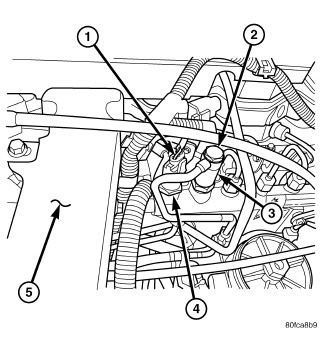

Install sensor (4) into fuel rail.
4.
To prevent leaks, sensor
must be tightened to 70 Nm (52 ft. lbs.).
5.
Connect electrical connector to sensor.
6.
Start engine and check for fuel leaks.
