Transmission Range Sensor - Removal

REMOVAL










1. Raise vehicle and position drain pan under the transmission range sensor (TRS).
2. Move the transmission manual lever to the manual LOW position. The manual LOW position is with the manual lever in the forward-most detent.
3. Disengage the wiring connector from the TRS.
4. Remove the two screws holding the TRS to the TRS mounting bracket.

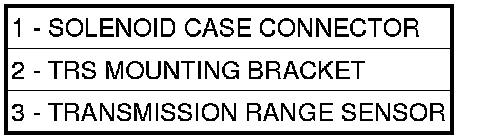

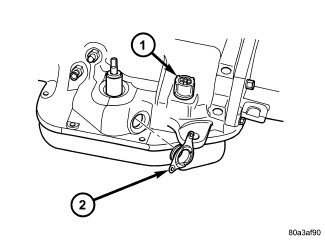

5. Remove the TRS (3) from the TRS mounting bracket by pulling it straight out of the bracket.

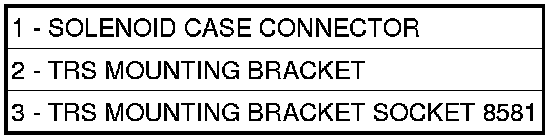

6. If necessary, loosen the TRS mounting bracket (2) in the transmission case using Adapter 8581 (3).










7. If necessary, remove the TRS mounting bracket (2) from the transmission case.
