Engine Specifications
SPECIFICATIONS

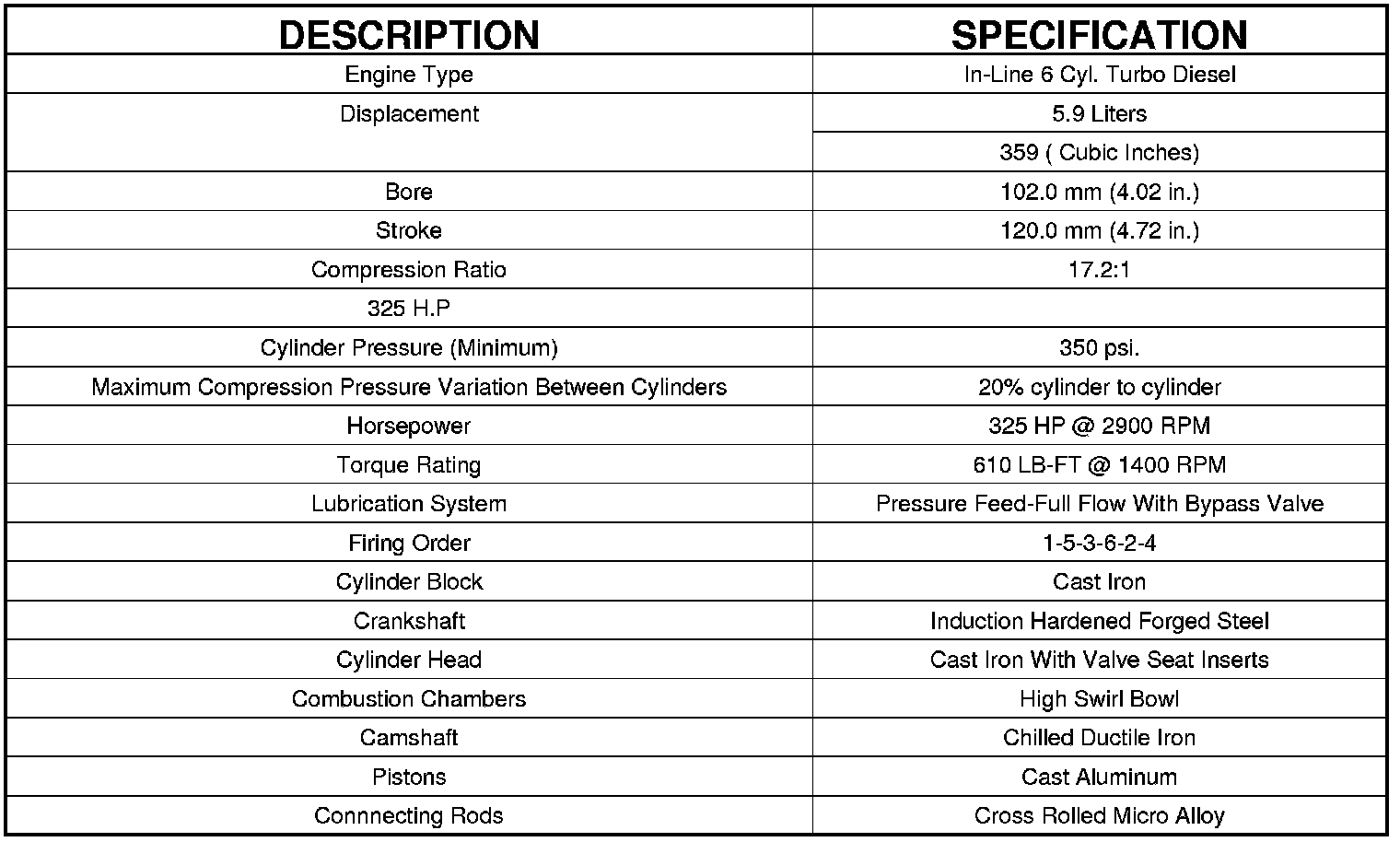

GENERAL DESCRIPTION

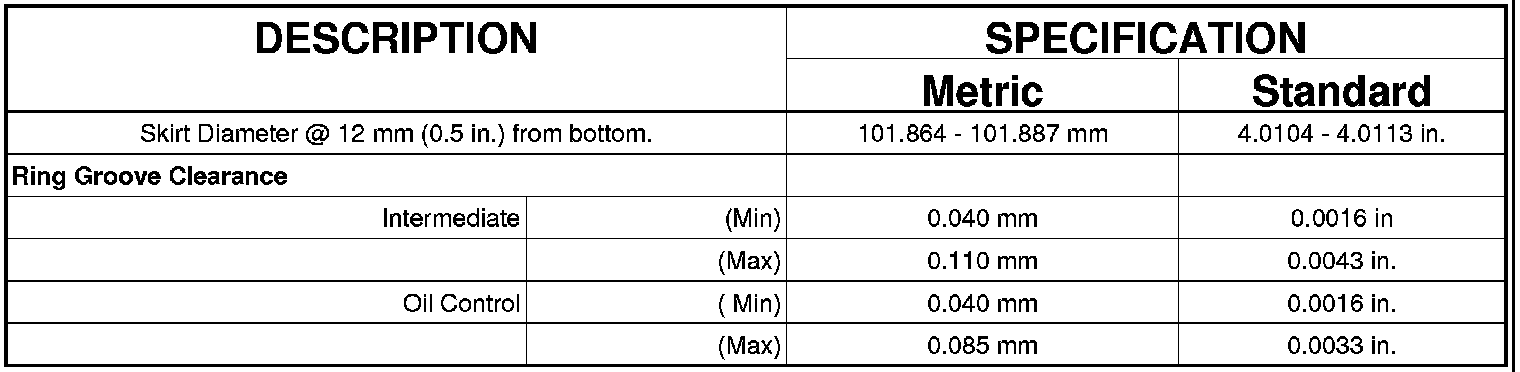

PISTONS

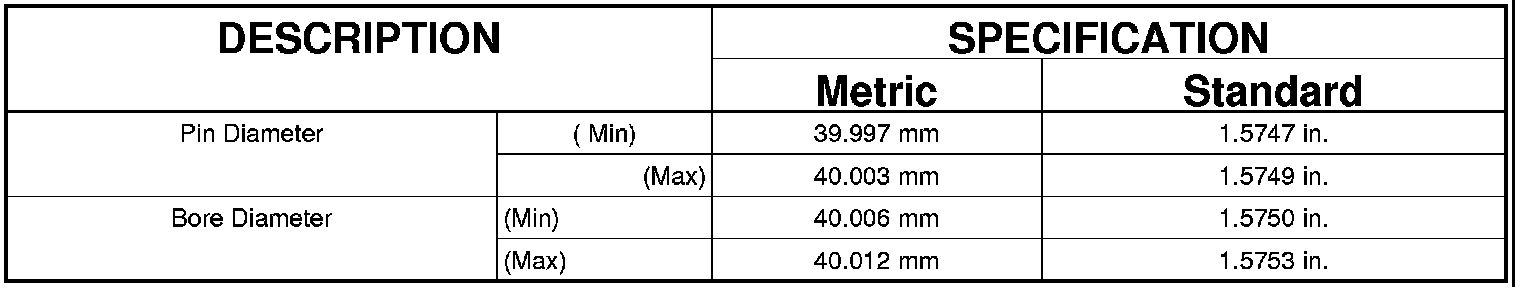

PISTON PINS

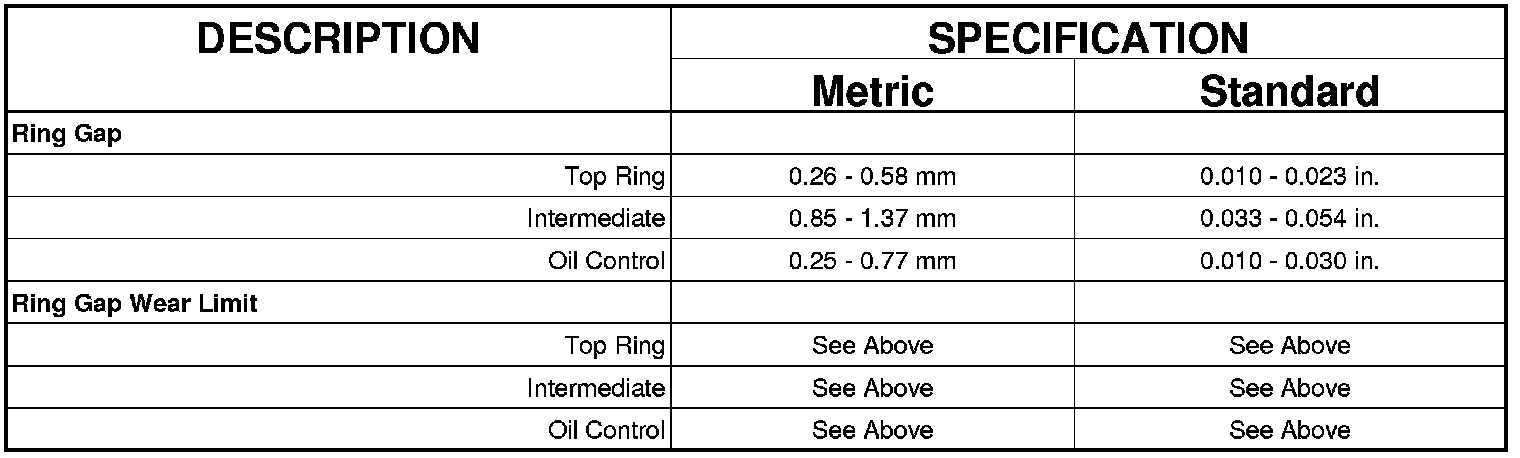

PISTON RINGS
CONNECTING RODS

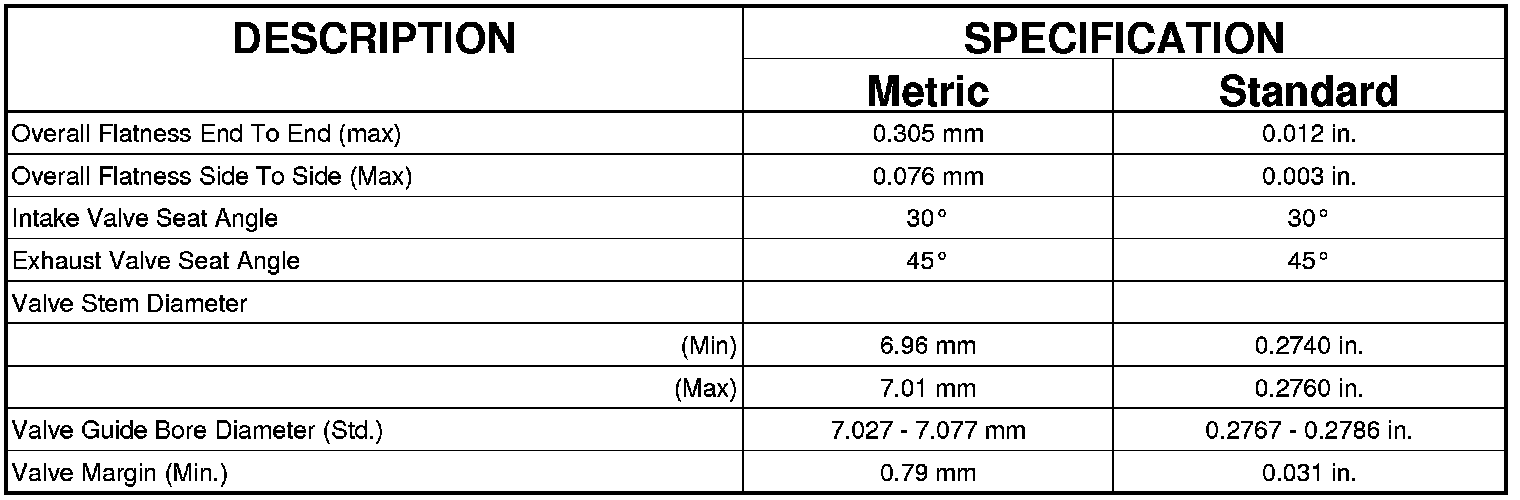

CYLINDER HEAD

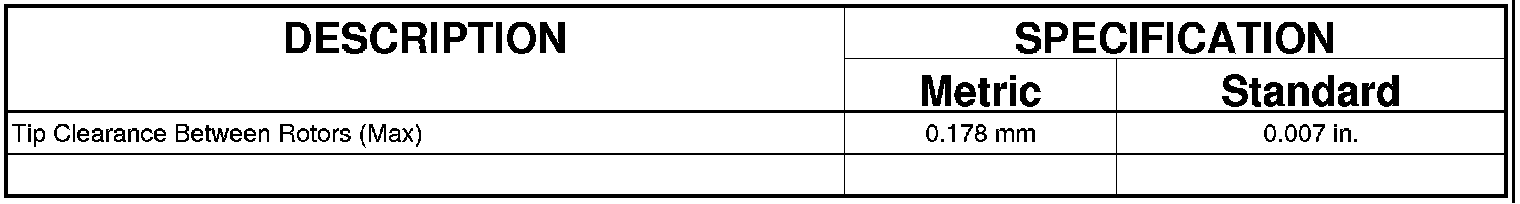

OIL PUMP

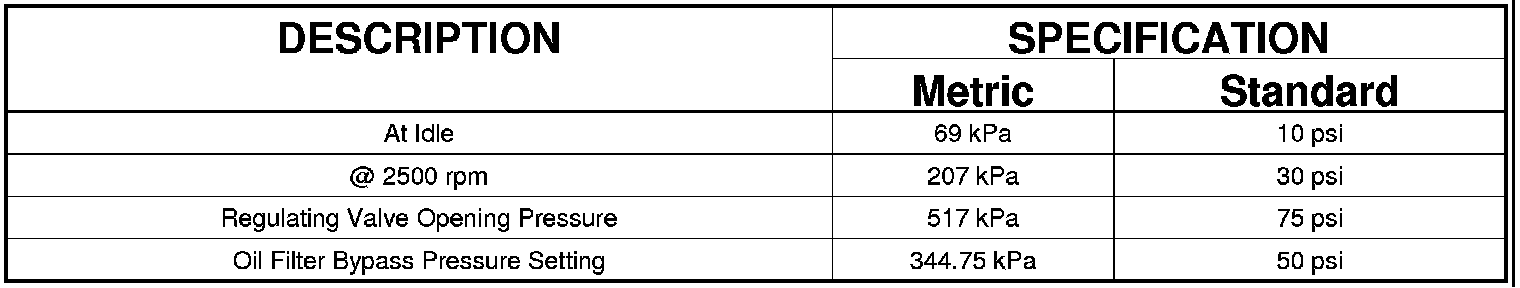

OIL PRESSURE

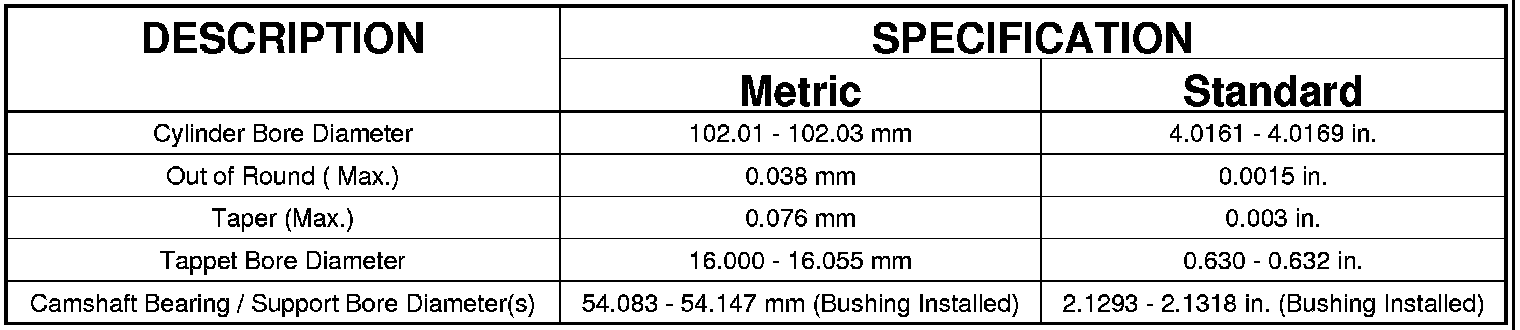

CYLINDER BLOCK

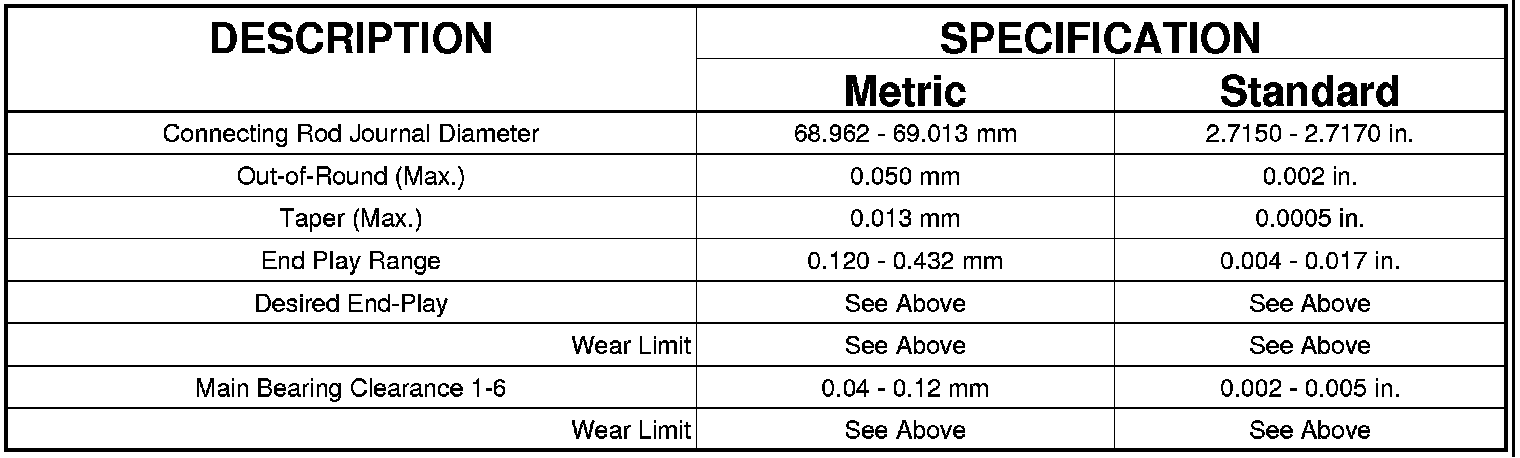

CRANKSHAFT

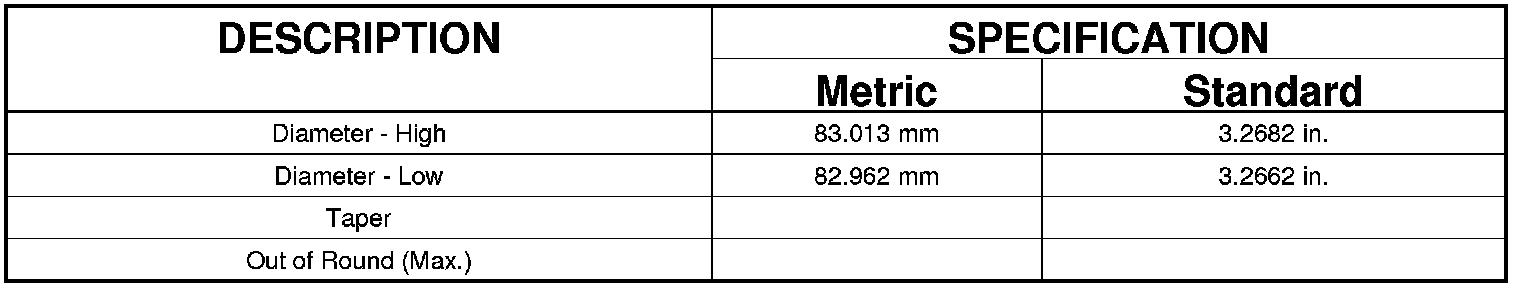

MAIN BEARING JOURNALS

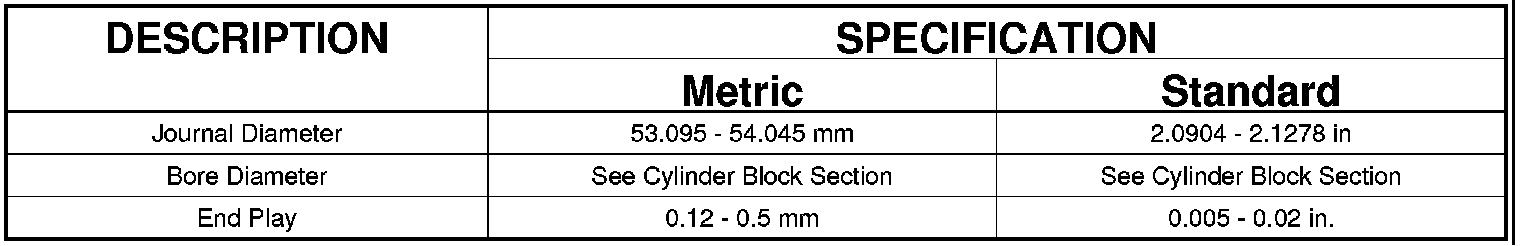

CAMSHAFT

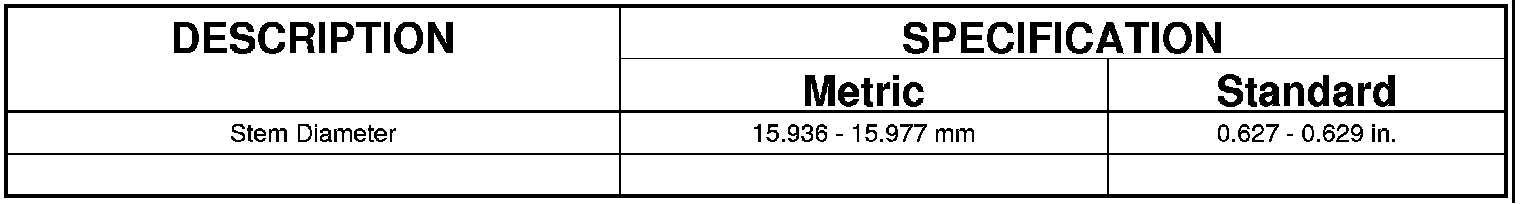

SOLID TAPPETS
VALVES
VALVE SPRINGS
