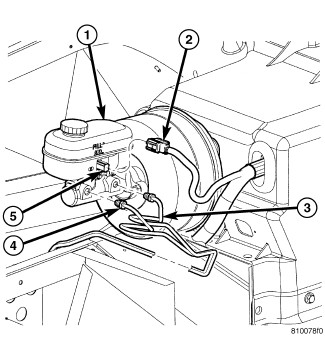

Brake Fluid Level Switch - Installation
INSTALLATION 1.
Align brake fluid level switch (5) with mounting hole on left side of master cylinder (1) brake fluid reservoir. Push switch into mounting hole until switch retaining tabs are expanded on opposite side of reservoir, locking it in place.
2.
Connect brake fluid level switch wiring connector (2).
