Installation

INSTALLATION

CAUTION: Take care not to damage the sensor when installing to the air inlet hose.

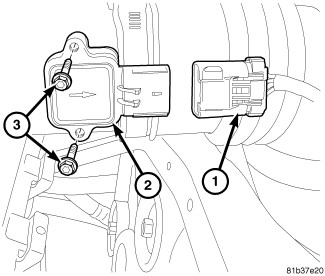

NOTE: Left inlet air temperature sensor shown the right side installed the same way.

1. Install sensor (2) and bolts (3) to air inlet hose. Tighten bolts 2 Nm (18 in. lbs.).
2. Connect the electrical connector (1) to the inlet air temperature sensor (2).
3. Connect the negative battery cable, tighten the nut to 10 Nm (90 in. lbs.).
