Crankshaft Position Sensor - Installation
INSTALLATION 1.

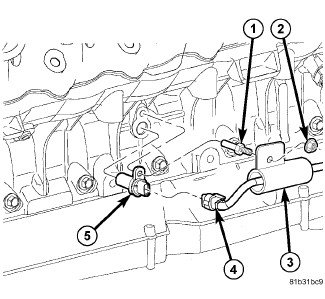

Install crankshaft position sensor (CKP) (5) and mounting stud (1) to engine block. Tighten stud to 9 Nm (79.5 in. lbs.).
2.
Connect electrical connector (4) to CKP (5).
3.
Install heat shield (3) and nut (2) to stud (1). Tighten nut to 8 Nm (71 in. lbs.).
