Oil Pressure Sensor - Installation
INSTALLATIONNOTE: If reinstalling oil pressure sensor apply thread sealant.NOTE: Sensor must be rotated to orient electrical connector clearance within 10 minutes of installation. 1.
Install

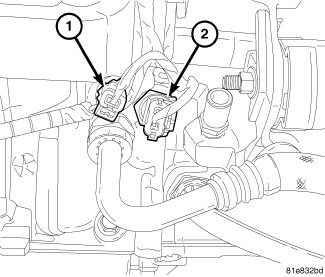

oil pressure sensor (2) and tighten to 9 Nm. (80 in.lbs.) and rotate to orient electrical connector.
2.
Connect electrical connector.
