Description






DESCRIPTION

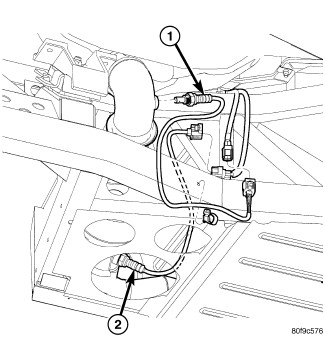

The upstream O2 sensors are in the exhaust system in the exhaust manifold collector area before the upstream catalytic convertor.

The downstream O2 sensors are in the exhaust system in between the catalytic convertors.
