Ignition Capacitor - Installation

INSTALLATION

CAUTION: Hand start the bolt to prevent damage from cross-threading.

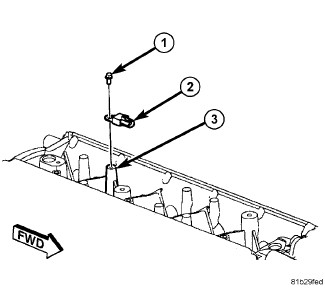

1. Install the ignition capacitor (2) to the engine block (3).
2. Install the ignition capacitor bolt (1) and tighten bolt to 10 Nm (88.5 in. lbs.).

3. Connect the ignition capacitor electrical connector (1).
4. Install the intake manifold, refer to Intake Manifold - Installation.

5. Connect negative battery cable. Tighten to 10 Nm (90 in. lbs.)
