Ignition Switch - Installation






INSTALLATION










1. Ensure the ignition switch is in the RUN position and the actuator shaft in the lock housing is in the RUN position.

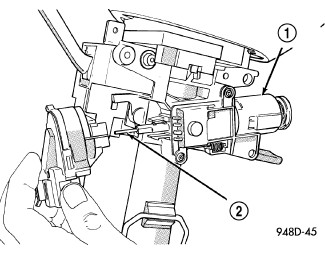

2. Carefully install the ignition switch. The switch will snap over the retaining tabs.

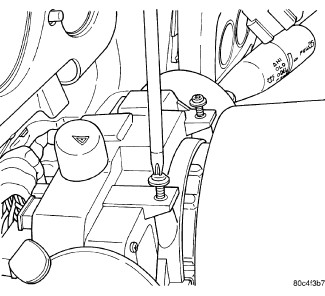

3. Install mounting screw.

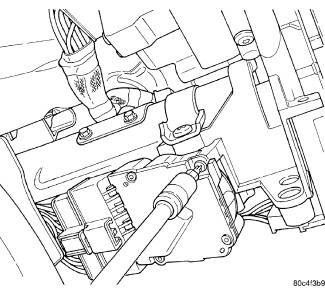

4. Install electrical connectors to ignition switch.





5. Install the multi-function switch and tighten the 2 screws.

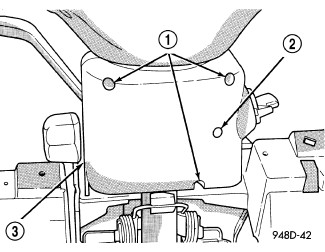

6. Install upper and lower shrouds.
7. Install key cylinder (cylinder retaining tab will depress only in the RUN position).
8. Connect the negative battery cable, tighten the nut to 10 Nm (90 in. lbs.).
9. Check for proper operation of ignition switch and key-in warning switch.
