Ignition Switch - Removal

REMOVAL

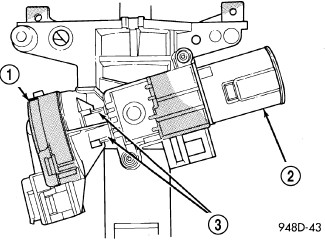

The ignition switch attaches to the lock cylinder housing on the end opposite the lock cylinder. For ignition switch terminal and circuit identification, refer to the Wiring Diagrams.










1. Disconnect and isolate negative battery cable at battery.
2. Place key cylinder in RUN position. Through the hole in the lower shroud, depress lock cylinder retaining tab and remove key cylinder.
3. Remove upper and lower shrouds from steering column.










4. Disconnect electrical connectors from ignition switch.





5. Remove the 2 screws on the top of the multi-function switch and relocate.

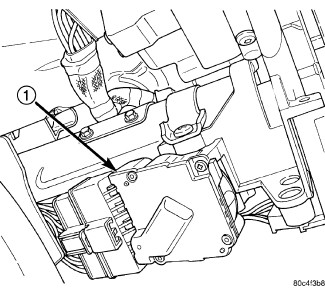

6. Remove ignition switch mounting screw with a #10 Torx(R) bit.

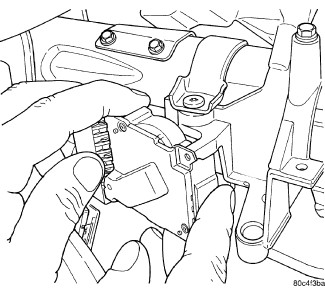

7. Pull ignition switch from steering column.
