Ride Height

CURB HEIGHT SPECIFICATIONS






NOTE: When measuring, the maximum left-to-right differential is not to exceed 12.5 mm (0.5 in.).

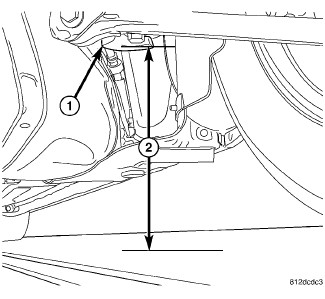

1. Front - On each side of the vehicle, measure the distance (2) from the frame rail just behind the engine cradle rear mount (1) to the floor or alignment rack/lift runway surface. It may be necessary to measure to the bottom of a straight edge, placed from lift runway to runway, to get an accurate measurement.





2. Rear - On each side of the vehicle, measure the distance (2) from the travel limiter (1) attached to the front rear crossmember mount bushing to the floor or alignment rack/lift runway surface. It may be necessary to measure to the bottom of a straight edge, placed from lift runway to runway, to get an accurate measurement.
