Impact Sensor - Installation






INSTALLATION

FRONT IMPACT SENSOR





1. Position the front impact sensor in the correct location and install the two retaining screws (2). Tighten screws (2) to 7 Nm (62 in. lbs.).
2. Connect the front impact sensor electrical connector (3).

NOTE: If replacing the left front impact sensor, the air intake system needs to be installed.

WARNING: Do not connect the battery negative cable Component Tests and General Diagnostics . If the system test is not performed first it may result in serious or fatal injury.


SIDE IMPACT SENSOR

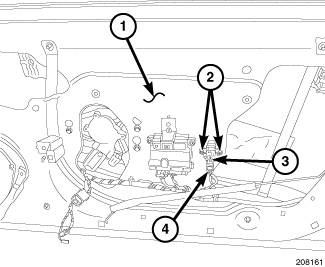

DOOR MOUNTED SIDE IMPACT SENSOR





1. Position the door mounted impact sensor (3) in the correct location and install the two retaining screws (2). Tighten screws (2) to 7 Nm (62 in. lbs.).
2. Connect the door mounted side impact sensor electrical connector (4).
3. Install the door trim panel. Front Door Trim Panel - Installation.

WARNING: Do not connect the battery negative cable Component Tests and General Diagnostics . If the system test is not performed first it may result in serious or fatal injury.

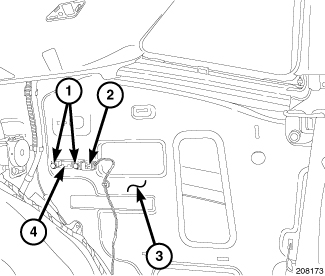

QUARTER PANEL MOUNTED SIDE IMPACT SENSOR





1. Position the quarter panel mounted side impact sensor (4) in the correct location and install the two retaining screws (1). Tighten screws (2) to 7 Nm (62 in. lbs.).
2. Connect the quarter panel mounted side impact sensor electrical connector (2).
3. Install the lower quarter trim panel.Quarter Trim Panel - Installation.

WARNING: Do not connect the battery negative cable Component Tests and General Diagnostics . If the system test is not performed first it may result in serious or fatal injury.
