Crankshaft Main Bearing
CRANKSHAFT MAIN BEARINGTighten main bearing cap bolts
13 Nm ( 10 ft. lbs.)
Tighten main bearing cap bolts
27 Nm ( 20 ft. lbs.)
Rotate main cap bolts an additional
90°
Tighten crossbolt
28 Nm ( 21 ft. lbs.)
Bearing Clearance
0.023 - 0.051 mm (0.0009 - 0.002 in.)

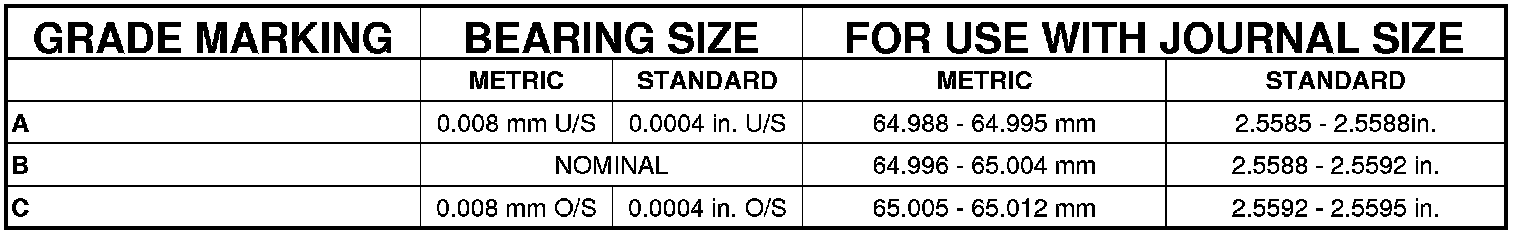

MAIN BEARING SELECTION CHART
