Cylinder Head Assembly

Cylinder Head

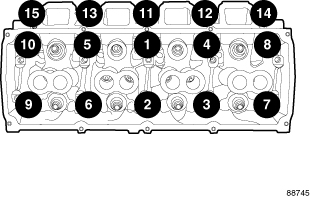

Tighten the cylinder head bolts 1 through 10 34 Nm (25 ft. lbs.)
Tighten the cylinder head bolts 11 through 15 20 Nm (15 ft. lbs.)
Tighten the cylinder head bolts 1 through 10 54 Nm (40 ft. lbs.)
Tighten the cylinder head bolts 11 through 15 20 Nm (15 ft. lbs.)
Rotate the cylinder head bolts 1 through 10 additional 90° turn

Tighten the cylinder head bolts 11 through 15 34 Nm (25 ft. lbs.)






SURFACE VARIATION - WARPAGE

If tolerances exceed 0.0508 mm (0.002 in.) replace the cylinder head.






CAMSHAFT BEARING CAP

Install the camshaft thrust plate
Tighten retaining bolts 28 Nm (21 ft. lbs.)

INTAKE MANIFOLD
Intake Manifold Specifications

EXHAUST MANIFOLD
Exhaust Manifold Specifications


CAMSHAFT GEAR/SPROCKET
Camshaft Gear/Sprocket Specifications
