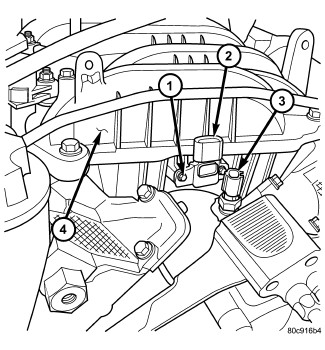

Engine Coolant Temperature Sensor - Installation
3.7L ENGINE 1.
Apply thread sealant to the ETC sensor threads.
2.
Install the ETC sensor into the intake manifold. Tighten sensor to 27 Nm (20 ft. lbs.).
3.
Connect the electrical connector.
4.
Fill the cooling system
Service and Repair.
