Splash Shield - Installation

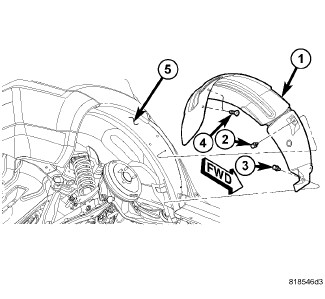

INSTALLATIONNOTE: Left hand side has 2 additional push pins as it has additional material to cover the fuel filler tube. 1.
Place splash shield (1) up to wheel house (5) and align splash shield holes with
fender.
2.
Install fasteners (4).
3.
Install push pins (2) and (3).
4.
Install the rear wheels.
