Front Lamp Unit - Installation

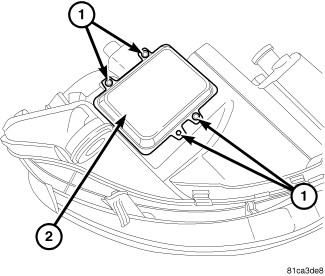

HID BALLAST MODULE





1. Install ballast module (2) into the front lamp unit.
2. Install the 3 screws (1) that secure the ballast module to the lamp unit.
3. Connect the battery negative cable.
