Center Console - Installation






INSTALLATION

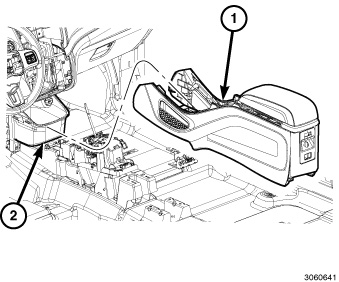

1. Position the floor console (1) into the vehicle.





2. Install the four bolts (1) located in the console storage bin. Tighten the bolts securely.





3. Connect the auxiliary/USB harness (1) located forward of the shifter.

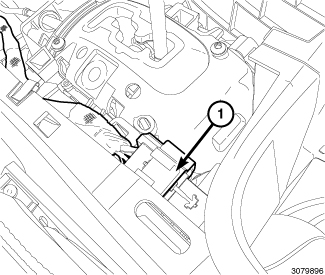

4. Connect the vehicle harness (1) located near the shifter.





5. Connect and align the shifter bezel (1). Once aligned, use firm pressure to engage the retaining snaps.
6. Install the bin liner and coin holder into the console bin.
7. Close the console lid.





8. Install the shifter knob (1).
9. Connect the negative battery cable.
