Front Lamp Unit - Removal

LAMP





1. Disconnect and isolate the battery negative cable.
2. Loosen the front fascia on the same side of the vehicle as the front lamp unit being removed. Front Bumper Fascia - Removal.
3. Remove the four plastic push-pin fasteners that secure the upper grille to the Front End Module (FEM).

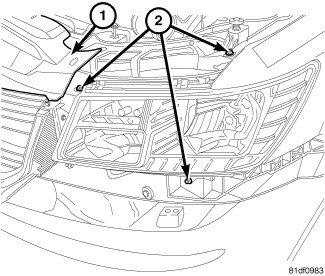

4. Flex the fascia and grille (1) outward far enough to access and remove the three screws (2) that secure the front lamp unit to the FEM.
5. Pull the front lamp unit away from the FEM far enough to access and disconnect the headlamp and dash wire harness connectors from the back of the lamp housing.
6. Remove the front lamp unit from the vehicle.
