Timing Component Alignment Marks: Locations
Rotate the engine until the timing mark (2) on the crankshaft damper aligns with the TDC mark on timing chain cover (2) (#1 cylinder exhaust stroke).

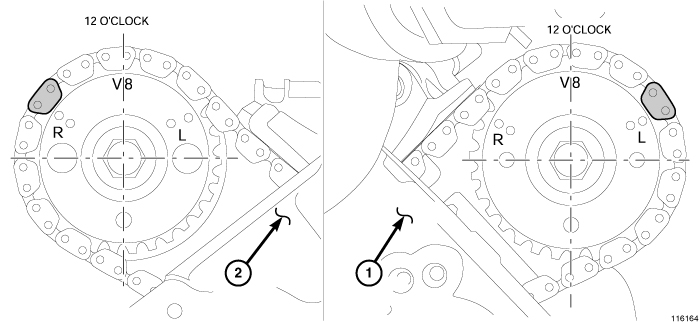

Verify the camshaft sprocket "V8" marks are at the 12 o'clock position (1,2).
