Cylinder Head Assembly

CYLINDER HEAD

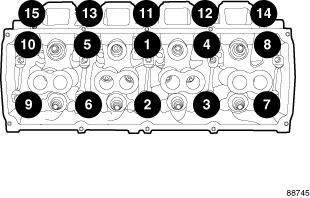

Tighten the cylinder head bolts 1 through 10 34 Nm (25 ft. lbs.).
Tighten the cylinder head bolts 11 through 15 20 Nm (15 ft. lbs.).
Tighten the cylinder head bolts 1 through 10 54 Nm (40 ft. lbs.).
Tighten the cylinder head bolts 11 through 15 20 Nm (15 ft. lbs.).
Rotate the cylinder head bolts 1 through 10 90°.
Tighten the cylinder head bolts 11 through 15 34 Nm (25 ft. lbs.).







SURFACE VARIATION -- WARPAGE

If tolerances exceed 0.0508 mm (0.002 in.) replace the cylinder head.


INTAKE MANIFOLD

Intake Manifold Specifications

EXHAUST MANIFOLD

Exhaust Manifold Specifications

CAMSHAFT GEAR/SPROCKET

Camshaft Gear/Sprocket Specifications
