Installation

INSTALLATION





1. Clean all gasket mating surfaces.
2. Using a new gasket (5), install the air intake heater (2). Tighten bolts (4) to 24 Nm (18 ft. lbs.).

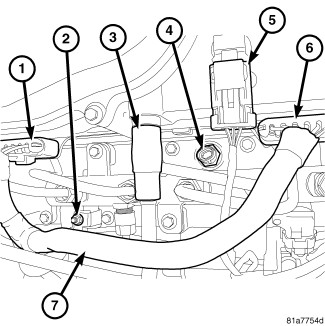

3. Connect crankcase pressure sensor harness connector (5).
4. Connect crankcase vent line (3) at top of valve cover.
5. Connect the fuel injector harness connectors (1) and (6).
6. Install heater cable to stud. Tighten nut (2) 10 Nm (89 in. lbs.).





7. Install fuel rail Fuel Rail - Installation

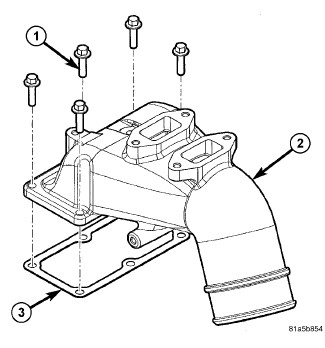

8. Install intake manifold (2) Intake Manifold - Installation
9. Connect both negative battery cables.
