Splash Shield - Installation
INSTALLATION 1.
Place splash shield (1) in position on vehicle.
2.

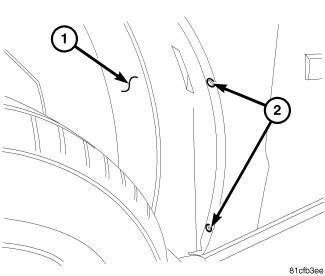

Install screws (2) attaching the wheelhouse splash shield (1) to front
fender.
3.

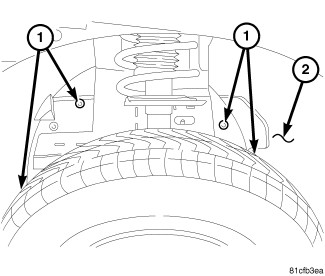

Install the push pin fasteners (1) attaching splash shield (2) to the body.
4.
Lower vehicle.
