Front Fender - Removal






REMOVAL

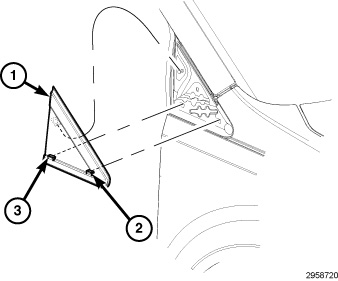

1. Remove the sideview mirror flag applique, Applique - Removal.





2. Remove the upper bolt (2) from the body at the sideview mirror.





3. Remove inner splash shield. Splash Shield - Removal.

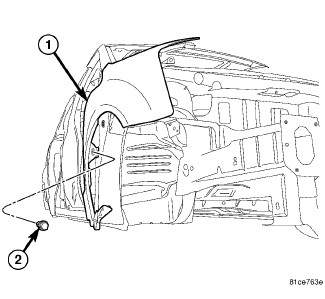

4. Remove the midpoint bolt 2 from the fender (1).





5. Remove fender to fascia nuts.
6. Pull fascia away from fender.
7. Remove outboard cowl grille/fender bracket screw and antenna right side only.
8. Remove fender bolts (2) to lower rocker panel.





9. Support/remove hood. Hood - Removal.
10. Remove bolts attaching fender to upper rail (2).
11. Remove fender (1) from vehicle.
