Front Fore And Aft






INSTALLATION

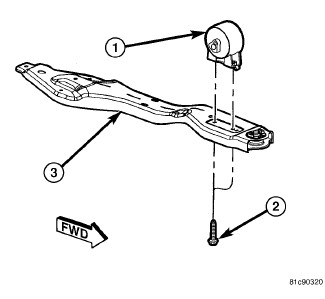

1. Install the front engine mount (1) onto the crossmember (3). Install the mounting bolts (1) and tighten to 55 Nm (41 ft. lbs.).

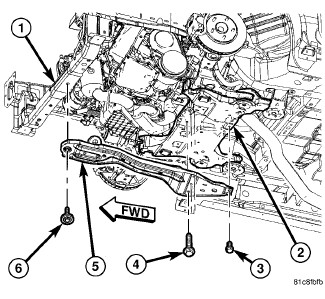

2. Position the fore-aft crossmember in engine compartment and install mounting bolts (3, 4, 6). Tighten the forward mounting bolt (6) to 113 Nm (83 ft. lbs.). Tighten the rearward mounting bolts (3, 4) at the suspension crossmember (2) to 55 Nm (41 ft. lbs.).

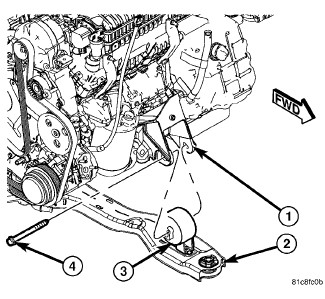

3. Install the front engine mount thru-bolt (4). Tighten the bolt to 60 Nm (44 ft. lbs.).

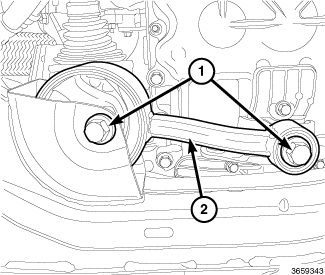

4. For models equipped with diesel engines, install the torque strut (2),.

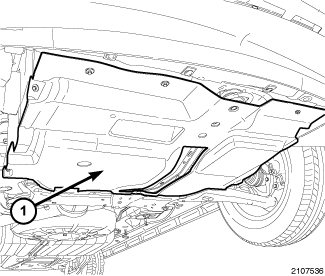

5. Install the belly pan/splash shield (1).
6. Lower the vehicle.
