Floor Console Base - Installation

INSTALLATION

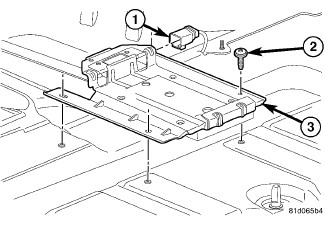

FLOOR CONSOLE BRACKET





1. Connect the electrical connector (1) to the bracket (if equipped with premium console).
2. Place the base bracket into position in the carpet opening.
3. Install the four screws (2) to the floor console bracket (3).
4. Install the floor console tray on premium consoles (if equipped). Refer to FLOOR CONSOLE TRAY.
5. Install the floor console Floor Console - Installation.

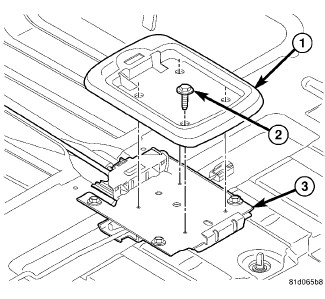

FLOOR CONSOLE TRAY





1. Install the four screws (2) holding the console tray ()1 to the console bracket (3).
2. Remove the floor console Floor Console - Installation.
