Front Overhead Console - Installation






INSTALLATION





1. Position the front overhead console assembly into the vehicle near the headliner assembly.

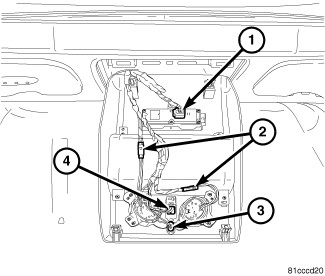

2. If equipped, connect the courtesy lamps (2), Light Emitting Diode (LED) lamp (3), infrared temperature sensor (4) and power sliding door/liftgate switch (1) electrical connectors.

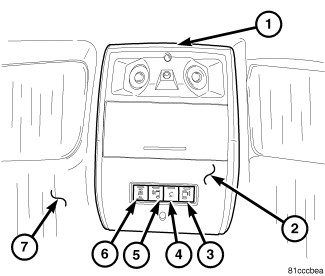

3. Grasp the sides of the overhead console (2) and push straight up evenly to engage the four snap clips into the mounting bracket above the headliner (7).
4. Connect the battery negative cable.
