Long Overhead Console






LONG OVERHEAD CONSOLE

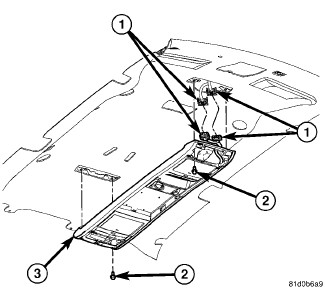

1. Position the overhead console (3) in vehicle over retaining slots.
2. If equipped with DVD screen, connect the electrical connectors (1).
3. Firmly snap the overhead console (3) into place to engage the console to the roof retainers.
4. Install the four screws (2) to the overhead console (two in the front and two in the back).

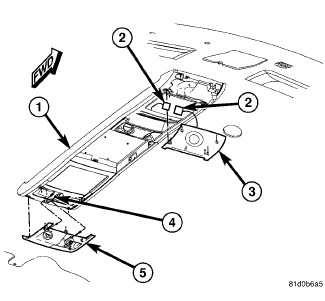

5. Connect the electrical connector (4) to the rear bezel (5) and firmly snap into place.
6. Connect the electrical connector (2) to the front bezel (3) and firmly snap into place.
7. Connect the battery negative cable.
