First Row






INSTALLATION

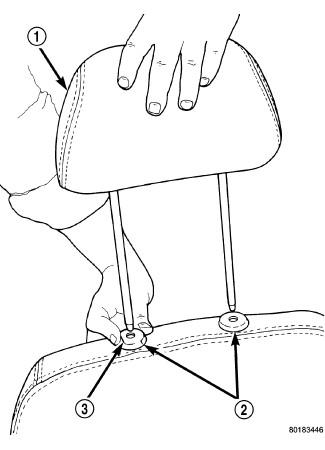

1. Position the head restraint (1) to the seat back.
2. Press the lock button (3) on the inboard sleeve (2) and push the head restraint down into the seat back.
