Compass And Mini-Trip Computer Module - Description

DESCRIPTION

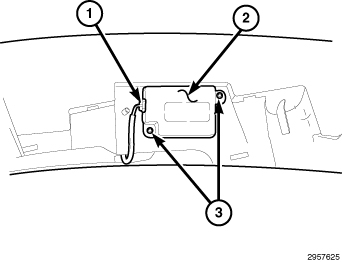

On vehicles not equipped with a Navigational (NAV) Radio, the Remote Compass Module (RCM) (2) is a separate stand alone module mounted to the top of the instrument panel. The RCM can be accessed by removing the instrument panel top cover / defroster grille. If the compass position sensor (Remote Compass Module) is inoperative and requires replacement, Service and Repair for the appropriate procedure.
