Blind Spot Module - Removal

REMOVAL

1. Disconnect and isolate the negative battery cable.

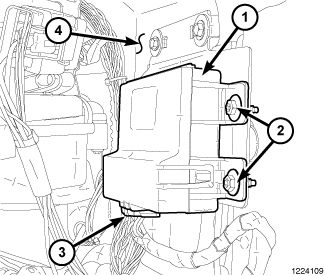

2. Remove the trim from the right quarter inner panel to access the blind spot module (1), which is located to the rear of the vehicle at the right D-pillar (4).Quarter Trim Panel - Removal
3. Disconnect the body wire harness connector (3) from the module connector receptacles.
4. Remove the fasteners (2) that secures the module to the mounting bracket.
5. Remove the module from the vehicle.
