Battery Tray - Installation
INSTALLATION 1.

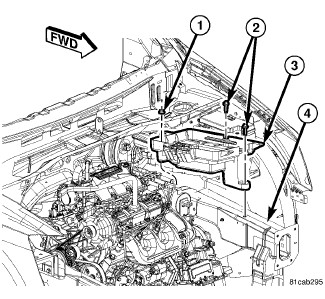

Place the
battery tray (3) into the engine compartment over the left frame rail (4).
2.
Install the one nut (1) and two bolts (2) securing the
battery tray (3) to the frame rail (4).
3.
Tighten the nut to 12 Nm (105 in. lbs.).
4.
Tighten the bolts to 12 Nm (105 in. lbs.).
5.
Install the battery
Battery - Installation.
6.
Connect the battery negative cable.
