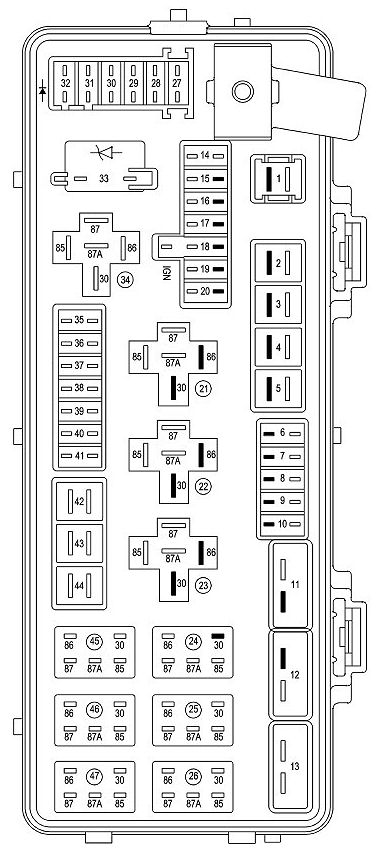

Rear Power Distribution Center

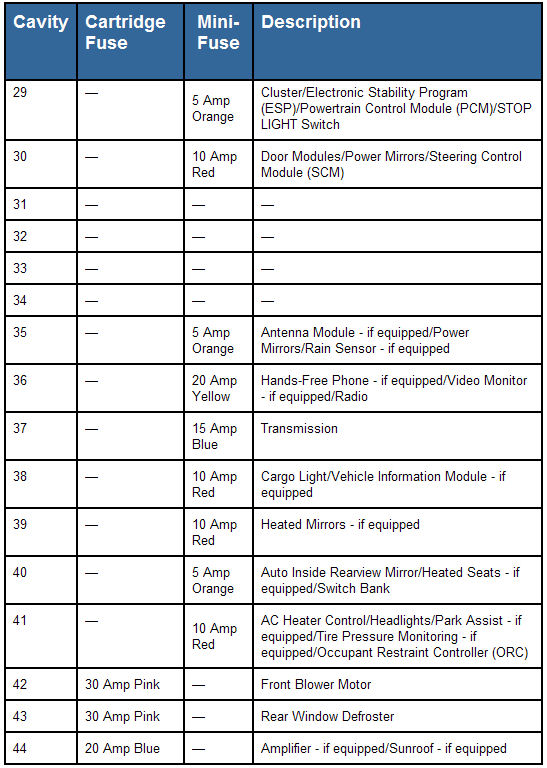

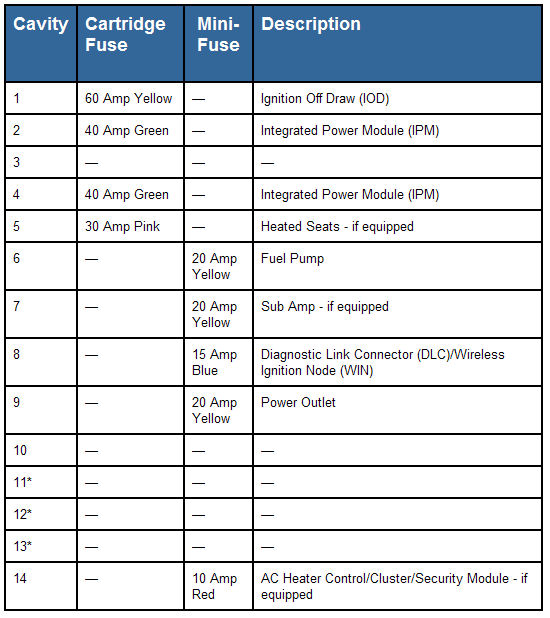

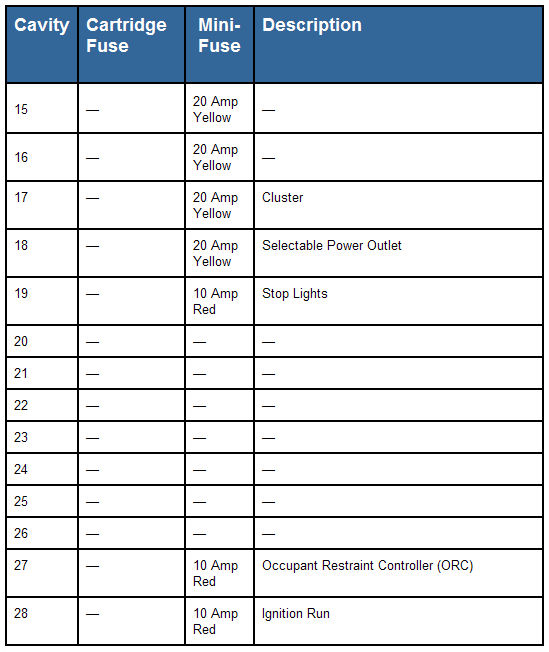

Rear Power Distribution Center Fuses




















There is also a power distribution center located in the trunk under the spare tire access panel. This center contains fuses and relays.
