Ignition Capacitor - Installation






3.6L

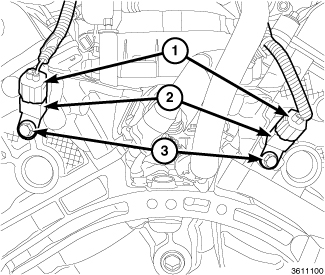

1. Position capacitor (2) to the rear of the cylinder head.

2. Tighten nut (3) to 7 Nm (60 in. lbs.).

3. Connect electrical connector (1) to coil capacitor.
